Outdoor Real Time PM2.5 VOC AQMS Air Quality Monitoring System
Quick details of Air Quality Monitoring System
The Air Quality Monitoring System is specially designed to monitor
the concentration of various gases in the outdoor environment.Air
quality monitoring station, also known as air station.The function
of the air station is to sample, measure and analyze the pollutants
in the atmosphere and air at fixed points, continuously or
regularly.In order to monitor the air, a number of air stations are
generally set up in a key environmental protection city.
Multi-parameter automatic monitoring instruments are installed in
the stations for continuous automatic monitoring, and the
monitoring results are stored and analyzed in real time to obtain
relevant data.The air quality monitoring station is the basic
platform for air quality control and reasonable assessment.
Parameters of Air Quality Monitoring System
| Name | Outdoor Real Time PM2.5 VOC AQMS Air Quality Monitoring System |
| Monitored Parameters: | SO2, NO2, CO, PM2.5, PM10, temperature, humidity, wind speed, wind
direction |
| Response time: | <1S |
| Power supply: | VAC220V Solar power |
| Battery | 8000MAH |
| Working time | <72h continuously (No external power supply) |
| Communication mode | GPRS,NBIoT, 4G, RS485 etc |
| Size | 250*250*370cm(host computer) |
Air Quality Monitoring System Specifications
* Pull the internal space is large, expand the application of
flexible
* Adopt environmental protection 212 painted, international
communication protocol,
*Low cost, good consistency, suitable networked and mass promotion
*Flexible design, gases can be combination according to customers
needs.
*Support online monitoring of platforms such as computers and apps

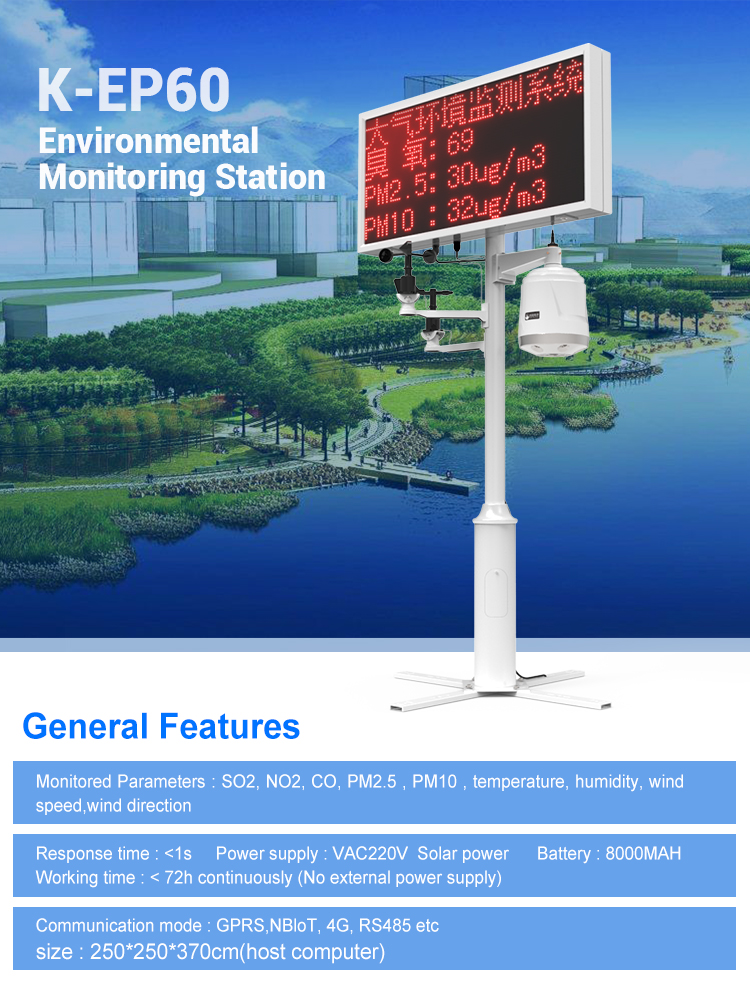

Details of Air Quality Monitoring System
