Fixed Gas Detector Controller With Anti - Jamming Software Technology

Fixed Gas Detector Monitor System Gas Detector Control Panel Connect With Computer Multi Toxic Gas Detector Controller

Description:

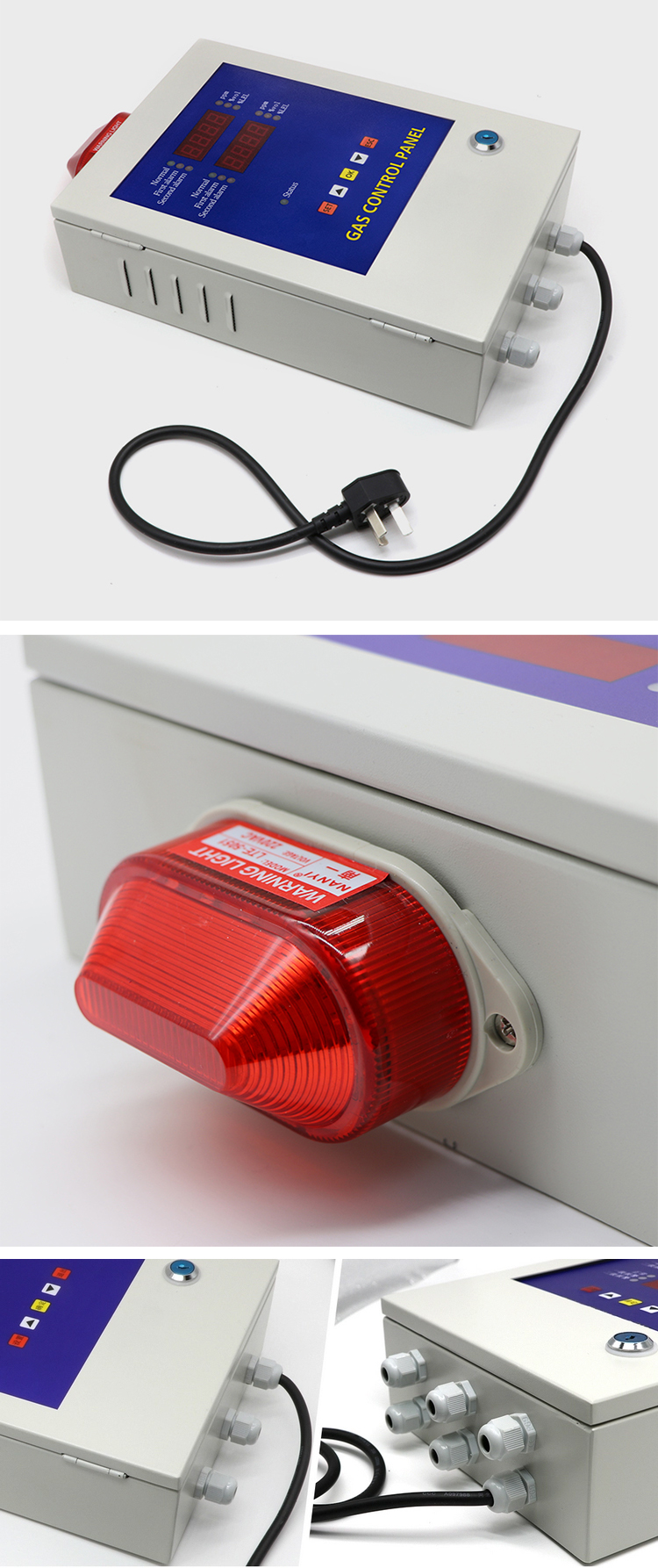

BH-50 is a single-point gas control panel. Each channel can connect with 1pc 4-20mA gas detector. With anti-jamming software technology, it is reliable and easy for maintenance.

Applications:

The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Features:

4-20mA or RS485 output optional
EX certificate
32-digit MCU control;
4-20mA analog signal input to connect with 4-20mA detectors;
4-2mA analog signal output to connect with DCS or other equipment;
24 relay output with each can be set separately;
Optional power supply of AC220V;
Different quantity of channel can be combined together.

Specifications:

Product type	BH-50 Gas controller
Channel	Single channel,two channels,four channels
Power supply:	AC220V±10% 50Hz
Consumption:	≤10W
Signal input:	4~20mA and RS485
Single output:	two lines RS485(MODBUS)
Working temperature	-10ºC~50ºC
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Installation method:	Wall-mounted
Dimensions	380x210x80mm(L×W×H)

Supported Gases:

No.	Detected Gas	Detecting Scope	Resolution	Low/High Alarm Point	Response Time	Detection Accuracy
1	PH3	0-20ppm	0.1ppm	5ppm/10ppm	≤25s	±5%(F.S)
2	O2	0-30%vol	0.1%vol	19.5%vol/23.0%vol	≤15s	±5%(F.S)
3	EX	0-100%LEL	1%LEL	25%LEL/50%LEL	≤5s	±5%(F.S)
4	CO	0-1000ppm	1ppm	50ppm/100ppm	≤25s	±5%(F.S)
5	H2S	0-100ppm	1ppm	10ppm/20ppm	≤30s	±5%(F.S)
6	NO2	0-20ppm	0.1ppm	3ppm/10ppm	≤25s	±5%(F.S)
7	NO	0-250ppm	1ppm	25ppm/50ppm	≤60s	±5%(F.S)
8	SO2	0-20ppm	0.1ppm	5ppm/10ppm	≤30s	±5%(F.S)
9	CL2	0-20ppm	0.1ppm	1ppm/10ppm	≤30s	±5%(F.S)
10	NH3	0-100ppm	1ppm	25ppm/50ppm	≤50s	±5%(F.S)
11	H2	0-1000ppm	1ppm	50ppm/100ppm	≤60s	±5%(F.S)
12	HCN	0-10ppm	0.1ppm	1ppm/5ppm	≤200s	±5%(F.S)
13	HCL	0-10ppm	0.1ppm	1ppm/5ppm	≤60s	±5%(F.S)
14	CH4	0-100%LEL	1%LEL	25%LEL/50%LEL	≤5s	±5%(F.S)

FAQ

Q1:Are you factory or trade company?
A1:We are factory.

Q2:What about the payment method?
A2:T/T, Paypal, Western Union, L/C is available.

Q3:Does your company accept customization?
A3:We do customizing service for customers.

Q4:What about the Shipment?
A4:We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment by air expresssuch as DHL,FEDEX,TNT or UPS.

Q5:What about after-sale service?

A5:12 months warranty for all kinds of products;
