Combustible Gas Detector combustible gas indicator 4 in 1
combustion gas detector
product description

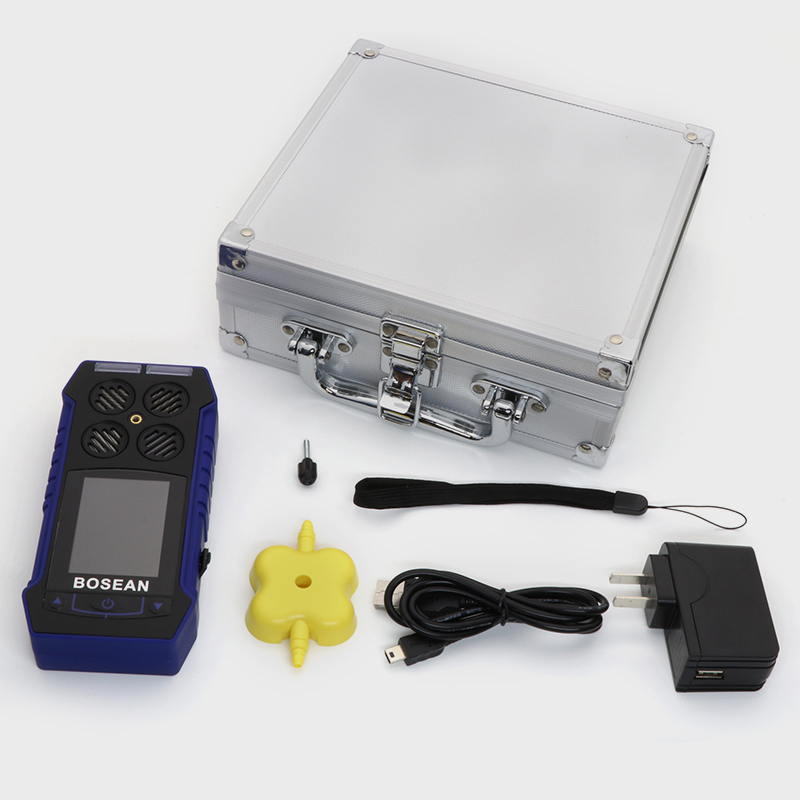

BH-4S portable compound gas detector is used for rapid detection of
various gas concentrations, high measurement accuracy, good
stability, small size, light weight, waterproof, dustproof,
explosion-proof, LCD adopts advanced circuit design, mature kernel
algorithm Processing, unique shape design, obtained a number of
patents such as software works and appearance. The machine is
suitable for detecting gas concentration in pipelines or in
confined spaces and atmospheric environments; gas leakage. More
than 500 kinds of gas are detected.
Advantage
Curve display: Can display changes of different gas concentrations
of a period of time, to help observe and analyzer date
Alarm methods:indicate alarm by sound,light,vibration,and curve
display in different colors,User can set high low alarm point
according to actual need.
USB date transmission interface:By installing our software,user can
upload records to computer, which makes it easier to do analysis.
International certification:ATEX,KA.MA,CNEX,CE,SIL
products paraments
| Operating & Storage Environment | Temperature: -20°C~55°C (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing)
Pressure: 95~110kPa |
| Sampling method | Diffusion type |
| Detecting Range | CO: 0~1000ppm
H2S:0~100 PPM
O2: 0~30%vol
Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL |
| Sensor | O2 /H2S / CO: plug-in electrochemical sensor |
| Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low
alarm, prompt tone, automatic shutdown alarm |
| Resolution | 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX) |
| Accuracy | 3% F.S |
| Response time | 10s |
| Repeatability | 1% |
| Zero drift | 1% |
| Data record | 500 pcs of data storage |
| Display | Alphanumeric large LCD displays the real time gas concentration and
alarm stage |
| Backlight | Automatically activated when working in poor lighting environment
or the alarm sounding or the button is knobbed down. |
| Self-checking Function | Self-checking Battery power, display, sensor, hardware failure |
| Explosion-proof | EXiaIICT4 |
| Protection grade | IP65 |
| Power Supply | Rechargeable lithium battery |
Support gas
| No. | Detected Gas | Detecting Scope | Resolution | Low/High Alarm Point | Response Time | Detection Accuracy |
| 1 | PH3 | 0-20ppm | 0.1ppm | 5ppm/10ppm | ≤25s | ±5%(F.S) |
| 2 | O2 | 0-30%vol | 0.1%vol | 19.5%vol/23.0%vol | ≤15s | ±5%(F.S) |
| 3 | EX | 0-100%LEL | 1%LEL | 25%LEL/50%LEL | ≤5s | ±5%(F.S) |
| 4 | CO | 0-1000ppm | 1ppm | 50ppm/100ppm | ≤25s | ±5%(F.S) |
| 5 | H2S | 0-100ppm | 1ppm | 10ppm/20ppm | ≤30s | ±5%(F.S) |
| 6 | NO2 | 0-20ppm | 0.1ppm | 3ppm/10ppm | ≤25s | ±5%(F.S) |
| 7 | NO | 0-250ppm | 1ppm | 25ppm/50ppm | ≤60s | ±5%(F.S) |
| 8 | SO2 | 0-20ppm | 0.1ppm | 5ppm/10ppm | ≤30s | ±5%(F.S) |
| 9 | CL2 | 0-20ppm | 0.1ppm | 1ppm/10ppm | ≤30s | ±5%(F.S) |
| 10 | NH3 | 0-100ppm | 1ppm | 25ppm/50ppm | ≤50s | ±5%(F.S) |
| 11 | H2 | 0-1000ppm | 1ppm | 50ppm/100ppm | ≤60s | ±5%(F.S) |
| 12 | HCN | 0-10ppm | 0.1ppm | 1ppm/5ppm | ≤200s | ±5%(F.S) |
| 13 | HCL | 0-10ppm | 0.1ppm | 1ppm/5ppm | ≤60s | ±5%(F.S) |
| 14 | CH4 | 0-100%LEL | 1%LEL | 25%LEL/50%LEL | ≤5s | ±5%(F.S) |
Note: Other gas and measure range not listed are all support customize,
please contact us for more details.
FAQ
Q1:Are you a trading company or manufacturer ?
A1:We are manufacturer.
Q2:What about the payment method?
A2:T/T, Paypal, Western Union, L/C is available.
Q3:Does your company accept customization?
A3:We do customizing service for customers.
Q4:What about the Shipment?
A4:We'll choose proper transportation mode based on the weight of
goods, usually arrange shipment by air express such as
DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service?
A5:12 months warranty for all kinds of products.
