Explosion Proof Battery Operated Gas Detector -20~60 Degree Work Temperature

Ask Lasest Price
Brand Name :	Bosean
Model Number :	k-100
Certification :	CE,FCC,ATEX,ROHS,SIL
Price :	USD70-130/PCS
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000PCS/DAY
Delivery Time :	3-8 WORK DAYS

Add to Cart

Product Details
Company Profile

Explosion Proof Battery Operated Gas Detector -20~60 Degree Work Temperature

Toxic Gas Detector High quality portable combustible explosion-proof gas leak detector

Description

Alarm mode: four ways of sound and light
Working temperature: -20 ° C -50 ° C
Standby duration: 8 hours or more of continuous operation
Sampling method: diffusion
Charging time: 6-8 hours
Protection level: IP65
Working voltage: DC3.7V 1800mAh
Display technology: 1.7-inch color LCD screen

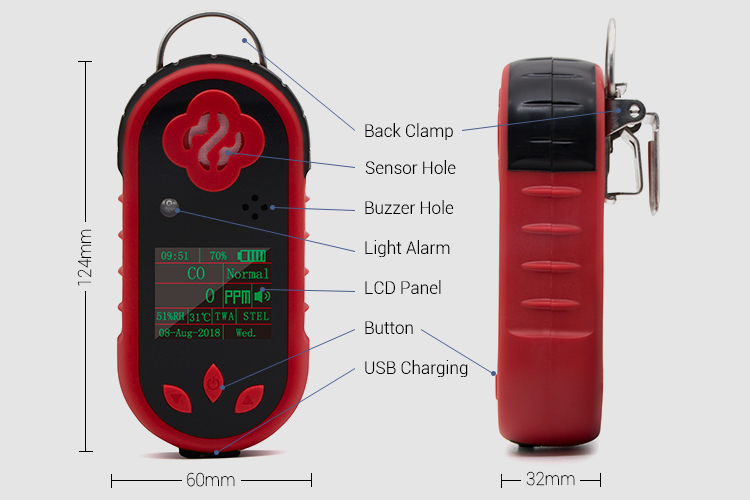

Dimensions: 1246032mm
Sensor life: 2 years
Response time: T(90)<30S
Product weight: 175g

Feature

Precision design in line with industrial environment
According to market research, the shape design conforms to the principle of human use, ABS non-slip industrial plastic
Black and white background switching, in line with the operating environment in dark and strong light
According to the requirements of working conditions, high and low reports, gas units, time settings, backlight settings can be set
Historical record, every interval 6S, the total record value is 2048, the data record will be saved automatically after shutdown.
Using an external charging chip, with internal partial pressure, segmentation, and time sharing, the charging is more stable
Can be connected to computer, software connection, output report, and comparative analysis of environmental conditions.

Parameters

Product type	K-100
Sampling method	Diffusion type(Sampling pump optional)
Display	Large LCD

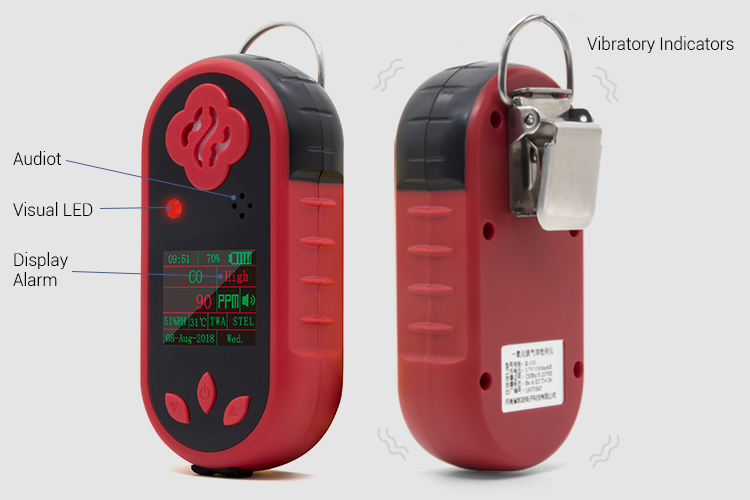

Alarm method	Audio, Visual LED and Vibratory
Working environment	-20ºC~50ºC
Power Supply	3.7V Rechargeable lithium battery
Gas Sensor Life	2 years
Charging time	Less than 5 hours
Data record	1000pcs data storage
Working time	8h continuously
Password protection	Password protection and password modification
Explosion-proof grade	Exib IIB T3 Gb
Principle	Electrochemical and Catalytic sensor
Additional function	Flashlight
Humidity	0-95%RH (no dew)
Shell materia	ABS
Dimensions	1006030mm(LWH)

Application

The detector is suitable for explosion-proof, toxic gas leakage and rescue, underground pipelines, mines, metallurgy, power plants,chemicals, tunnels, etc., effectively avoiding the occurrence of poisoning accidents,ensuring the safety of workers and avoiding losses of production equipment.

Our patent certificate

Measurable Gas Meter

No	Detecting Gas	Gas	Measure Range	Resolution	Alarm Point (High / Low)
1	Combustible Gas	EX	0-100%LEL /0-100%VOL	1%LEL/1%VOL	20 / 50% LEL
2	Oxygen	O2	0-25% /30%VOL	0.1%VOL	19.5% / 23.5%VOL
3	Hydrogen Sulfide	H2S	0-50/100/200/1000 ppm	0.1 ppm	10 / 20 ppm
4	Carbon Monoxide	CO	0-500/1000/2000/5000 ppm	1 ppm	50 / 150 ppm
5	Nitrogen Dioxide	NO2	0-20/50/1000 ppm	0.1 ppm	5 / 10 ppm
6	Nitric Oxide	NO	0-250/500/1000 ppm	1 ppm	50 / 150 ppm
7	Carbon Dioxide	CO2	0-5000 ppm /0-1%/5%/10%VOL	1 ppm/0.1%VOL	1000 /2000 ppm
8	Sulfur Dioxide	SO2	0-20/50/100/200/1000 ppm	0.1 /1 ppm	5 / 10 ppm
9	Chlorine	CL2	0-20/100/1000 ppm	0.1 ppm	5 / 10 ppm
10	Ammonia	NH3	0-50/100/500/1000 ppm	0.1 ppm	20 / 50 ppm
11	Hydrogen	H2	0-1000/5000 ppm	1 ppm	50 /150 ppm
12	Phosphine	PH3	0-5/20/50/100/500/1000 ppm	0.1 ppm	5 / 10 ppm
13	Hydrogen Chloride	HCL	0-20/500/1000 ppm	0.01/0.1 ppm	5 / 10 ppm
14	Chlorine Dioxide	CLO2	0-10/50/100 ppm	0.1 ppm	5 / 10 ppm
15	Hydrogen Cyanide	HCN	0-50/100 ppm	0.01/0.1 ppm	10 / 20 ppm
16	Ethylene Oxide	C2H4O	0-10/20/50/100/200/500 ppm	0.1 /1 ppm	20 / 50 ppm
17	Ozone	O3	0-10/20/100 ppm	0.1 ppm	2 / 5 ppm
18	Formaldehyde	CH2O	0-20/50/100 ppm	0.1 /1 ppm	5 / 10 ppm
19	Hydrogen Fluoride	HF	0-1/10/50/100 ppm	0.01 /0.1 ppm	2 / 5 ppm
20	Methylbenzene		0-1/10/20/50/100 ppm	0.01 /0.1 ppm	5 / 10 ppm

Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.
