Laser Height Measurement Laser Range Finder for 500m 1000m 1500m
Description:
M series laser range finder military, adopts 7*26 large diameter
multi-layer coating optical lens, to ensure adequate light through,

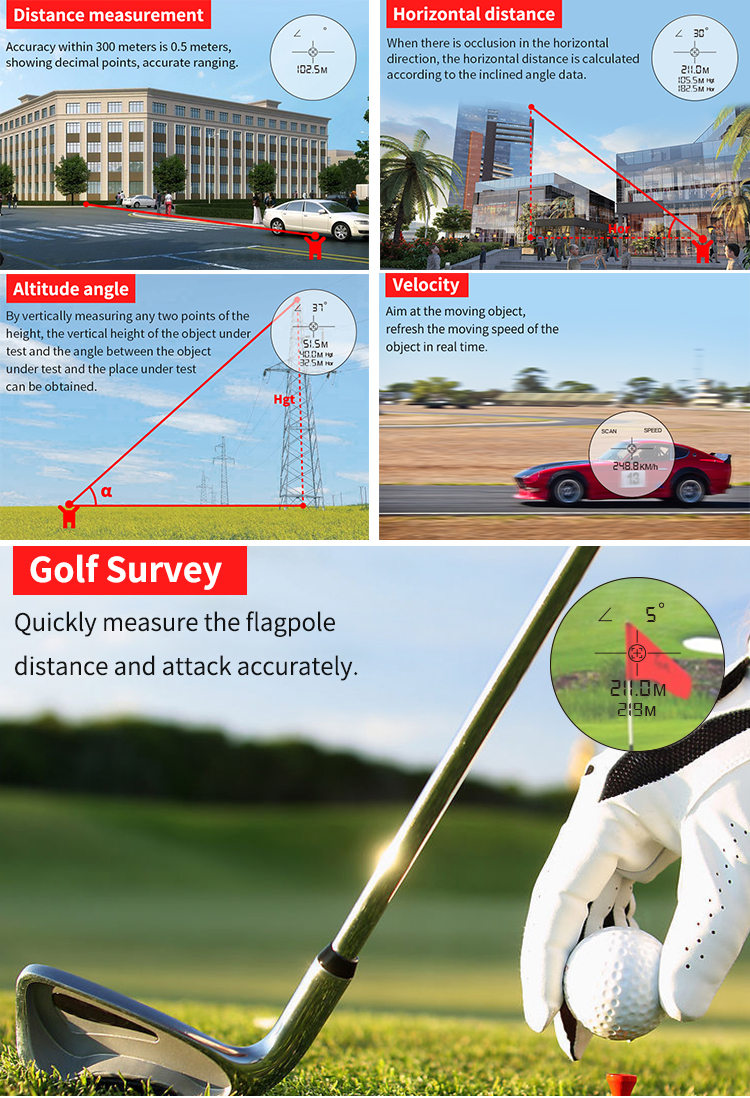

with six kinds of measurement mode, ranging, speed, height, side
angle, space two point, golf flagpole scan. Internal use of 6-axis
sensor, more accurate measurement, the reaction is more sensitive.
Fuselage with anti-skid decoration, solid material, beautiful
design, with waterproof, dustproof and non-slip design.
The whole product is small and convenient, one handhold type, using
3V lithium battery, over 5000pcs operating times, which is widely
used in terrain measurement, industrial monitoring and control,
mining, ports and other fields.
Main Featurers
1. Min/max measurement
2. Continuous measurement
3. Stake-out function
4. Addition/subtraction
5. Area/volume
6. Pythagoras: 3 points, partial height
7. Height tracking
8. Illuminated display
9. Multifunctional end-piece with automatic recognition
Specifications:
| Product Name | M-600VH series laser range finder military |
| Measure Range | 600m |
| Measurement Time | 0.1~0.3s |
| Operation Temperature | -20℃~50℃ |
| Storage Temperature | 0℃~40℃ |
| Unit Selection | M/YD |
| Laser Light Type | 905nm |
| Objective Caliber | 22mm |
| Eye Relief | 3.8mm |
| Eyepiece Caliber | 16mm |
| Magnification | 7X |
| Measurement Angle Range | <±90° |
| Field of View Angle | 7° |
| Battery | Rechargeable 3V lithium battery |
| Size | 130*87*45 mm |
| Weight | 187g |
| Display Mode | LCD Screen |
| Field of View Angle | 7º |
| Diopter Adjustable Range | ±5º |
| Measuring Standard Switch | √ |
| Data clearing | √ |
| Battery indicator | √ |
| Signal strength indicator | √ |
| Continuous measurement( max/ min) | √ |
| Addition/ Subtraction | √ |
| Volume/ Area/ Pythagorean measurement | √ |
| Trapezoid Measurement | √ |
| Triangular Area Measurement | √ |
| Back Light | √ |
| Laying off | √ |
Application Area
FAQ:
Q :Do you offer products of any specifications?
A :Yes, customized specifications are available upon request.
Q :Can you provide samples?
A :Yes, we are happy to provide customers samples for checking the
quality.
Q :What is the minimum order quantity?
A :Minimum order quantity may vary by product categories and
customization requirement, pleas reach us with the items in mind so
we can let you know the moq.
Q :Do you offer oem or odm service?
A :Yes, oem or odm service are welcome.Bosean is especially
experienced in working with our customers on joint-development
projects.
Q :How long is your usual lead time if we place an order?
A :The lead time for an order is determined by the below factors:
1.Quantities and products types of the order;
2.Current orders obligation (orders to be fulfilled on schedule);
So please let us know your ordering detail and we can evaluate and
let you know the lead time.
Q :How is your production capacity?
A :We have 2 workshops ,The capacity is about 600pcs of laser
rangefinder per day.
